Subject : Anti-Vibration Digital Signage  ( 17” 4:3  industrial high brightness  panel )

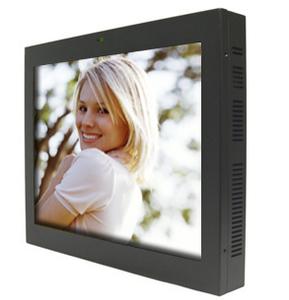

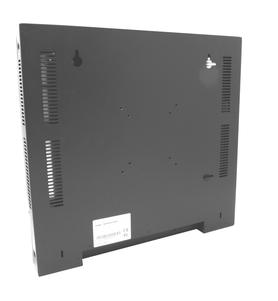

Specifications  SUN-SG8170AV  anti-vibration Digital Signage  ( 17” 4:3  industrial high brightness  panel )

LCD Spec.

Panel model

17” 43  TFT   LCD panel

Max Resolution

1280 x 1024

Aspect Ratio

4: 3

Pixel Pitch

 0.264 x 0.264 mm

Viewing Angle

85/85/80/80

Contrast Ratio

1000:1

Brightness

1500 cd/m

Response Time

5ms

Operation Temp

( 0~60°C)

panel size(mm)

359.87 (W) x 297.1 (H) x 17.5 (D) mm

Unit size/ weight

389 (W) x 347 (H) x 45 (D)/383x382x45 (Speakers) mm/ outline size can be adjustable

Player Spec.

Video format

MP4(AVI: DIVX/XVID), MPEG2(DVD: VOB/MPG2), MPEG1(VCD: DAT/MPG1)

Audio format

MP3….

Picture format

JPEG, BMP, PNG, GiF …formats

Memory Cards

TF nand flash card

Build –in Flash Memory

4GB Nand flash (Max up to 16GB)

Timer Function

Auto Power on/off setting

Super Android board

 8 cores, RK3288 CPU (A-17@ ) with double 8 bits and 10 bits two LVDS design board

Protect Function

Theft-protection device effectively prevent the player  TF card  from being stolen in public

place

Android Version

 Android 4.4 (5.0) version

Slide Show

Support background music when playing picture

Interface Language

Support different languages (Japanese, Chinese, English, etc.)

Software supporting

Use “iSeeboard” software (English version) through Wi-Fi to update contents

Calendar & Time

Support check calendar, adjust time and display it on the screen on/off

Others

Environmental Factors

Store temperature: -10 ~ 65°C

Relative humidity: 20%-80%

Anti-Vibration system

Special anti-vibration industrial Top A grade system design for Train, Bus

Speaker

built with 2 X 3W stereo speaker

Mount method

shelf/wall mount

Accessory

Power Supply, User's manul, Lock Key, Remote controller

Applications

Bus, Train shelves, showcase
