  • A/D Board
  • Built-in inverter board
  • Controller Board
  •  Available with or without a touch panel Touch Panel
  •  Controller can be either USB or RS232 (serial) interface
  • Safety standard: UL, CSA, FCC, CE, TC099, CB, MPRII, Energy Star, GS, VCCI

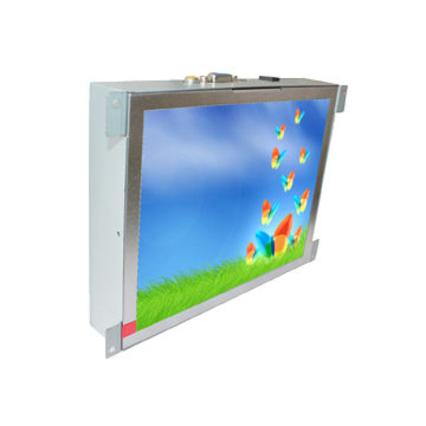

7″ Open Frame 16:9

Model Name

SUN-SG732 Super Light LCD Open Frame

LCD Display

7” 16:9 TFT LCD Digital panel Display

Viewable Size (H x V)

154.8 (W) x 93.5 (H) mm

Dot Pitch (H x V)

0.195 x 0.195mm

Contrast ratio

400 : 1

Brightness

260cd/m2

Lamp life time

18,000 Hrs

Viewing Angle

L/R: 80º + – 10, U/D: 70º + – 10/65º + – 10

Display Color

262,000

PC Interface

15-pin VGA, D-sub,RGB, 0-0.7Vpp , RGB Analog , 75Ω terminated

Display Mode

480 x 234, 800 x 480, 800 x 600 (60Hs, 72Hz), 1024 x 768 (60Hz)

Max Resolution

1024 x 768 (60Hz).

Horizontal Freq.

Vertical     Freq

30-75 Khz

56-72 Hz

OSD Controls

YES, Adjustment Brightness, VGA, AV model, …..

Power Adaptor

Input AC 100 ~ 240V 50 / 60Hz

OutputDC 12V 2A

Operating Conditions

Temperature 0 ~ 50℃, Humidity 5% ~ 95%

Storage Conditions

Temperature -10 ~ 60℃, Humidity 5% ~ 95%

Speakers

1.5W x 2 Box insideimitation stereo SPEAKERS

Multi-Media port

VGA, S-video, 3 ports for R.W,Y, USB

Optional Functions:

Touch Screen, Card Reader (CF, SD…card)

Certification

CE、FCC, C-Tick, VCCi (for Japan), BSMi, RoHS (Optional)

Dimension

Set

190mm (W) ×48mm (D) ×143 (H)


NW

900 Gram (0.9 kg)


GW

1.5 kg


Languages

English. Other languages German, French, Spanish, Portugal … (optional by 2k mini order).

Specifications are subjected to change without prior notice.
