Great Sun Tech Corp

12″ Network Digital Signage

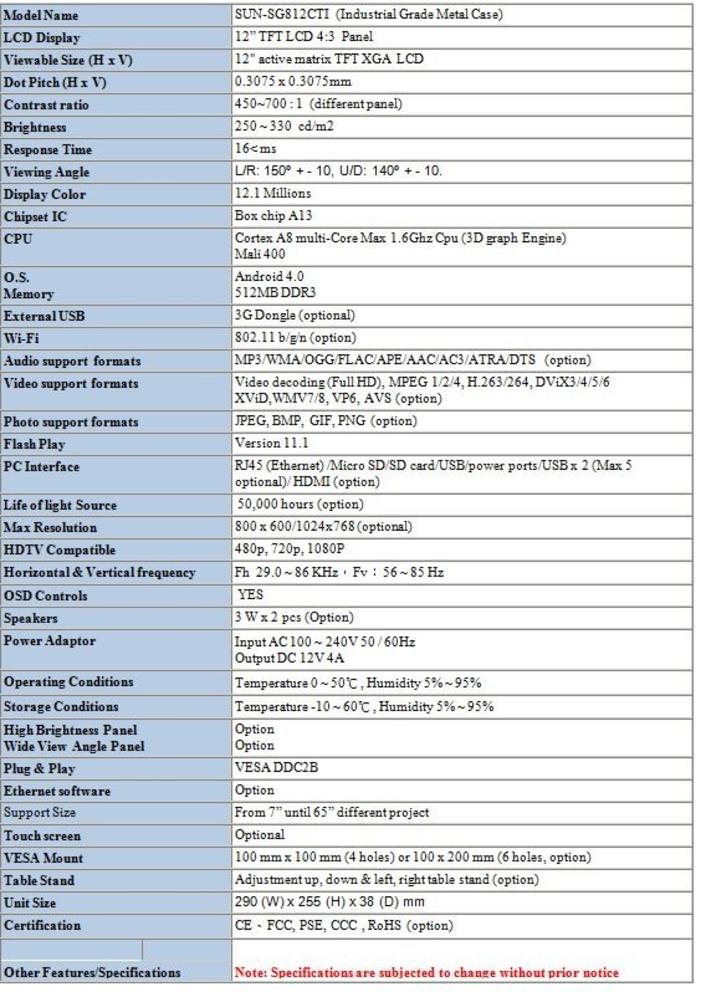

SUN-SG812CTI — 12” Cloud Signage (Industrial grade metal case)
Wireless Digital Signage Screen With Network Software

Join the digital signage revolution with our unique range of digital signage products. This is the 12″ Integrated Digital Signage Player and Screen is perfect for POS. The screen has built-in WiFi and can be managed via an online content management system. If you have a chain of stores this is the most cost affective way of talking to your customers at the point of purchase. Saving on great printing costs and with absolutely NO lead times this is a fantastic assest to your business!

Using Digital Signage can be beneficial across many sectors including:

* Retail: Grocery Stores, Shopping Malls, Salons, etc.
* Transportation: Airports, Train Stations, Subways, Bus Stations, etc.
* Hospitality: Hotels, Resorts, Restaurants, Bars, etc.
* Financial: Banks, Electronic Kiosks, etc.
* Education: Colleges, Schools, Libraries, Campuses, etc.
* Healthcare: Hospitals, Doctors/Dentists/Veterinarians’ offices, etc.
* Corporate and Business: Conferencing Rooms, Training Rooms, etc.
* Entertainment Venues: Cinemas, Sports Arenas, Amusement Parks, etc.
* Reception Area: Reception, Waiting Rooms, Entrance Gates, etc.
* Exhibition: Show Rooms, Exhibition Halls, etc.

42″ ACTIVE MATRIX TFT Commercial Digital Signage Display

42″ ACTIVE MATRIX TFT Commercial Digital Signage Display

Sun Group SUN-420SGIW 42″W ACTIVE MATRIX TFT Commercial Display is designed for use in educational, retail, public and commercial signage applications. Full 1080p resolution provides a clear view in any installation. Generous screen size and super slim bezel make messages stand out in a big way. Multiple connectivity and resolutions provide you with lots of options for showing a diverse set of digital signage content; from video, to internet pages, PowerPoint, Flash, and much more with ultimate HD clarity. Display your vivid graphics and stunning video beautifully with this large, bright and high contrast screen.

Media player embedded
Variety of sizes
Low power consumption
Customized metal chassis / frame
Optional tempered glass cover in front

Model	SUN-SG8550HBF25
Screen size	55inch LCD with LED Backlight Module
Dot pitch	0.630mm(H) x 0.630mm(V)
Display color	16.7M(8bits/color)
View angle	H：178（CR≥10）
View angle	V：178（CR≥10）
Signal input	HDMI
Brightness	2500 nits (Typical)
Contrast	5000 ：1
Response time	8ms
Display area	1750mm(H) x880.5mm(V) x140mm(D)
weight	60KG
Resolution	1920×1080
Free voltage	AC100-240V
Power consumption	350W for 1500nits (indoor), 600W for 2500nits (outdoor, waterproof)
Operating temperature	-10 to+45℃
Storage temperature	-20 to+60℃
Operating humidity	＜90%RH

55″ Digital Signage

55inch Ultra-High Brightness for all weather digital signage displays

SUN-SG8550HBF25

55inch ultra-high brightness indoor/outdoor digital signage Ultra High Brightness LED Backlight Powered Display.

Product Description

LED backlight source are used in the lcd display instead of traditional CCFL backlight. the brightness of the LCD screen is up to 1500nits~2500nits(about 4-5times brightness of conventional products),which is the most power-saving and brightest outdoor LCD display in the world at present.
Our product can adjust the brightness automatically according to ambient environment with auto-dimming system no matter it’s under strong direct sunshine or total dark indoor environment. It can display words and images in resolution 1920*1080 and also save power at the same time.
With its advantages of ultra-high brightness and wide operating temperature, no matter in humid environment with storm or environment of -10 situation, our product can work stable and show clear images for a long time even if the screen’s surface is under strong and direct sunshine.

Our LCD advertising player can reduce the led backlight brightness or turn if off automatically to protect lcd screen and other accessories from damage when the ambient environment exceeds 50centigrade with its overheating protection system, which can extend our system life. .

Specification

Product feature

Adopting our patented power-saving high brightness led backlight ,the brightness of the LCD screen image is up to 2500nits(it’s about 7-8times conventional products’ brightness)
Wider working temperature:-10centigrade to 45 centigrade
The LCD screen surface is without condensation in low temperature and humid environment.
Auto-dimming system, it can adjust the brightness automatically according to ambient light (to maximize energy efficiency)
High bright color gamut , resolution up to 1920*1080
Energy-efficiency fan cooling system
Outdoor all-weather waterproof and dustproof metal case +anti-reflection protective glass
Rack-mounted built-in LCD display module + anti-theft locks(easy for on-site dismantlement and maintenance),which is our unique patent.
When strong direct sunlight is on the screen surface, it shows images beautiful and clearly.
With outstanding features of waterproof, dustproof , overheating temperature ,it could be used in outdoor all-weather harsh environment (required to replace dustproof cotton every 6 ~ 12 month, it depend on your system condition)
8GB high speed SD card included
Safe locking system to protect SD card and U-disk
Play advertising programs automatically in regular time
Built-in 2 waterproof stereo speakers, rated power：2 X 5 W
Multi-language OSD, such as English, Spanish, Russian, French(customized)

Features and specification

55inch ultra-high brightness for all weather digital signage displays

55inch High Brightness LCD with LED Back Light Module
Intelligent LED backlight modular components
Patented thermal structure and high quality fan cooling system
Highlight dedicated industrial graphics driver
External power supply cable:5m
Auto-dimming system to adjust the brightness automatically(to extend the life and save energy)
Combination of built-in power adapter, intelligent overheating protection system
Outdoor waterproof metal casing+ 6mm protective glass
The LCD screen surface is without condensation in low temperature and humid environment
Waterproof independent outdoor, lock behind the casing(Led display, dust filter and computer controlled are separated)

Hardware and functions

ARM Cortex A8
8GB high speed SD card
support network updating & control
stable embedded player
Brightness: greater than 1500 nits
Resolution: 1080 x 1920
Contrast：5000 :1
Operating temperature：-10degree to 45degree
Audio amplifier device 2 X 5 W
Can be clearly seen under strong and direct sunshine
Low-temperature environment.Posted in 55" Digital Signage (NEW)

42 Inch Android Digital Signage

42 Inch Network Android Digital Signage42 Inch Network Android Digital Signage

Detail Spec Click Here

SUN-SG8420CTI is an interactive digital displayer which is specifically built for retailer to creation attention and increase sales. It provides openness of Android System, easier process in creating contents, rich communication and interactive with customers, can directly link to website, ability to utilize a wide variety of retail applications to promote products, run campaigns and entertain customers.

Users can download applications from the Android Market or use our Digital signage made easy software.

Digital signage made easy.

22″ Network Digital Signage

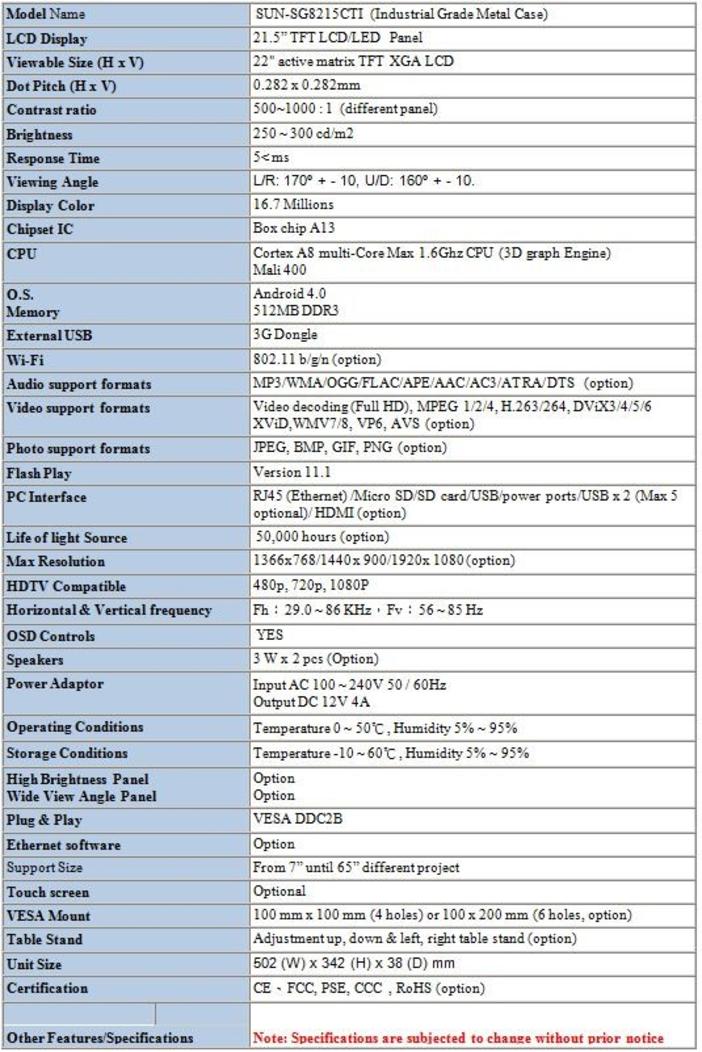

SUN-SG8215CTI 22″ (Industrial Grade Metal Case)
Wireless Digital Signage Screen With Network Software

Join the digital signage revolution with our unique range of digital signage products.

This is the 22″ Integrated Digital Signage Player and Screen is perfect for POS. The screen has built-in WiFi and can be managed via an online content management system. If you have a chain of stores this is the most cost affective way of talking to your customers at the point of purchase. Saving on great printing costs and with absolutely NO lead times this is a fantastic assest to your business!

Using Digital Signage can be beneficial across many sectors including:

* Retail: Grocery Stores, Shopping Malls, Salons, etc.
* Transportation: Airports, Train Stations, Subways, Bus Stations, etc.
* Hospitality: Hotels, Resorts, Restaurants, Bars, etc.
* Financial: Banks, Electronic Kiosks, etc.
* Education: Colleges, Schools, Libraries, Campuses, etc.
* Healthcare: Hospitals, Doctors/Dentists/Veterinarians’ offices, etc.
* Corporate and Business: Conferencing Rooms, Training Rooms, etc.
* Entertainment Venues: Cinemas, Sports Arenas, Amusement Parks, etc.
* Reception Area: Reception, Waiting Rooms, Entrance Gates, etc.
* Exhibition: Show Rooms, Exhibition Halls, etc.

LCD Specifications
Model Name		SUN-420SGIW internet-WiFi Metal case system
LCD/LED Display		42"W ACTIVE MATRIX TFT
Viewable Size (H x V)		42” active area
Pixel Pitch		0.1615 x 0.4845 mm
Panel Outline Dimension		983(H) x 576 (V) x 50.8.0(D) mm
Contrast ratio		4000: 1
Brightness		400 ~ 1500 cd/m2 (high brightness) optional
Response Time		5ms
Viewing Angle		170°(V)，(CR＞10)
Display Color		16.7 Millions
Display IO Connector
Interface port		SD card/USB/HDMi/VGA
Life of light Source		50,000 hours (Typ)
Max Resolution		1920 x 1080 (1080P)
Horizontal & Vertical frequency		Fh：29.0 ~ 86 KHz，Fv：56 ~ 85 Hz
OSD Controls		YES
Speakers		External Max 10W speakers
Software with SG system		Support Video/photos and rotating/scaling text, Auto power on/off setting by internal timer
Touch Screen		Optional
File Support
Support media format		MPEG1/2/4/JPEG/MP3
Playback list		XML Language scribe file, Video/photo play back at same time, Specify photo play back with MP3 audio.
Protection Hard Glass		Optional
FW update		USB Flash disk or internet update
Security		Remote Controller access by password (optional), DMA support. SD card locked (optional)
Power Management
Power Adaptor		Input AC 100 ~ 240V 50 / 60Hz Output DC 12V 4A
Operating Conditions		Temperature 0 ~ 50℃, Humidity 10% ~ 90%
Storage Conditions		Temperature -10 ~ 50℃, Humidity 10% ~ 90%
Plug & Play		VESA DDC2B
VESA Mount		special VESA Mount holes with stand
Content
Certification		CE,FCC, PSE, RoHS, BSMi (optional)
Accessories		VGA/HDMi cable, user manual and Software driver CD x 1/remote x1/power adaptor, cable x 1
Unit Size :		995 (W) x 590 (H) x 88 (D) mm (without stand),
		Note: Specifications are subjected to change without prior notice
