---------------------------------------------------SUPERIOR QUALITY FEATURES-------------------------------------------------
Specification
|
Model No. |
SUN-SG7030P Super brightness Transparent 1080P Show Box |
|
Panel size |
70″ LCD screen |
|
Body Outside Dimension |
1100(W)*1778(H)*380(D)mm |
|
Body Stand with whell |
1100(W)*1963(H)*460(D)mm |
|
Show box size |
865mm x 1545mm x 300 mm |
|
Show product weight |
Max 50 Kg |
|
Door Open |
Left to Right |
|
Side of LED light unit |
6 ” x 8 |
|
View Angle L/R U/D |
88°/88° 88°/88° |
|
Panel face of Brightness |
Stander 650 lux + – 8% |
|
Backlight option |
1300 Lux ~ 1700 Lux(Change Backlight unit with Cost) + – 8% |
|
Contrast Ratio |
4000 : 1 |
|
Resolution |
1080 * 1920 |
|
Picture Aspect Ratio |
9 : 16 |
|
Respond Time |
5 ms (Gray to Gray) |
|
Window Tempered Glass |
tempered safety 4mm |
|
Body color |
Black / White |
|
Web Camera |
Microsoft 720P |
|
I.R direct sensor |
optional with additional cost |
|
Built-in Amper with Speaker |
30W x 2 (8 ohm) |
|
Touch Panel Type |
IR – 6 point |
|
USB 3.0 |
2 pcs |
|
Internet connect |
RJ45 |
|
Power consumption |
400 W |
|
Cooling System |
60 x 60 – Fan |
|
AC Power Input |
AC 85V ~ AC 240V 50~60Hz |
|
Operation Temperature |
0 ℃~50 ℃ |
|
Show box inside temp & Humidity |
37 ℃ 40% |
|
Storage Temperature |
-20 ℃~80 ℃ |
|
Packing Dimension |
138 x 80 x 212 |
|
Body N.W./G.W. Weight |
190kg / 270 kg |
|
Warranty |
13 Month after shipment |
|
Key Features: |
|
|
Built-in computer (Optional) |
CPU Intel I5 2410, RAM=2G, HDD 500G UP, Windows x7, Power adapter for the IPC |
|
Wireless Wi-Fi |
optional with additional cost |
|
I.R direct sensor |
optional with additional cost |
|
MOQ Order |
1 pc |
*Outdoor environment requires custom designed weatherproof enclosure.
Ultra High Contrast
Brilliant & luscious colors
Powerful black pixel covering
- Discover the breathtaking showcase opportunities, products in conjunction with digital touch media.
- Whether high-end products in the showroom, at trade shows or in stores. This tool is like a smart window – the transparent multitouch(Optional feature) display introduces in a new era of product presentation.
- High Display Transparency – Clear and bright colors
- Plug and Play easy setup
- Powerful LED Backlight – High reliability and lifetime
- Toughened safety glass(Optional), rugged metal housing
- Various sizes available, from 32" to 84"
- SI SERIES HIGH BRIGHT Display
- SM/SP SERIES OUTDOOR Display
- Interactive Digital Touch Tables
- Outdoor Weather proof Kiosk
- Transparent LCD Displays
- High Brightness LCD Displays
- Cloud Based Software & Hardware Solutions
- 12" Network Digital Signage
- 22" Network Digital Signage
- Hardware Solution
- 12" Network Digital Signage
- 21" Network Digital Signage
- 42" Network Android Digital Signage
- 42" Network Digital Signage
- 55" Digital Signage (NEW)
- 7" Digital Signage
- 8" Digital Signage
- 10.4" Digital Signage
- 17" Digital Signage
- 19" Digital Signage (MS Pro)
- 12" Digital Signage Standalone
- 17" Digital Signage (MS)
- 17″ Digital Signage Standalone
LCD / TV
- 8″ LCD TV
Open Frame TFT
- 7" Open Frame
- 10" open frame
- 15" Open Frame
- 17" Open Frame
- 19" Open Frame
- 22" Open Frame
- 23" Open Frame
- 26" Open Frame
- 30" Open Frame
LCD Control Boards
Sunlight Readable LCD
Wide Temprature LCD
LED TV
- 32-inch LED TV
- 42-inch LED TV
Open Frame Video Card
Optical Touch Screen
Touch Screen TFT
- 15" Touch Screen Monitor
- 7″ Touch TFT Monitor
Touch Screen Open Frame
- 2.4" – 7" Video Brochure Card
Outdoor Digital Signage
- 32" 1080P High-Definition outdoor signage
- 46" 1080P High-Definition outdoor signage
- 55" 1080P High-Definition outdoor signage
- 70" 1080P High-Definition Outdoor Signage
Great Sun Tech Corp
Manufacturer and Supplier of Digital Signage ,Visual Displays and Monitors.

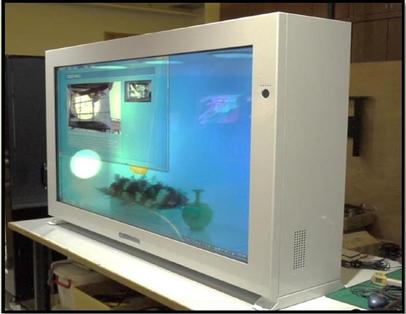

70” LCD Transparent Display Show Box
Real MultiTouch
10 simultaneous touch points
Suitable for the use of gestures
- SI SERIES HIGH BRIGHT Display
- SM/SP SERIES OUTDOOR Display
- Interactive Digital Touch Tables
- Outdoor Weather proof Kiosk
- Transparent LCD Displays
- High Brightness LCD Displays
Transparent LCD Solutions
See-through LCD panels can be integrated into store windows, Display cases, billboards, and more to make static words and images more kinetic. Products can be placed behind a clear screen that shows advertising.
Transparent LCD panels are a tool to make your advertising more dynamic and have endless possibilities as an advertising tool, which can be applied to show windows and used in showcase events. Corporations and schools can also adopt the panel as an interactive communication device, which enables information to be displayed more effectively.
SUN Group presents the future of retail space with a transparent LCD panel that can be used to dramatically enhance kiosks, store windows, and billboards with text and images that do fancy tricks like rotate and fade in and out rather than just sit there. Think bus shelters with see-through walls displaying scrolling schedules and clothing shop windows that feature models sashaying down the catwalk.
The transparent LCD panel has a high transparency rate, which enables a person to look right through the panel like glass, and it consumes 90% less electricity compared with a conventional LCD panel using back light unit. It’s because a transparent LCD panel utilizes ambient light such as sun light, which consequently reduces the dependency on electricity for generating power.
Discover the breathtaking showcase opportunities, products in conjunction with digital touch media. Whether high-end products in the showroom, at trade shows or in stores. This tool is like a smart window the transparent multi-touch display introduces in a new era of product presentation
