Great Sun Tech Corp

Model No.  L (Landscape), P (Portrait).

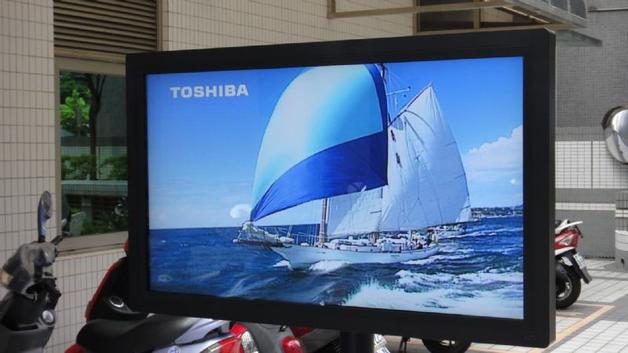

SUN-SG5525L 1080P 55″ High-Definition outdoor signage

Panel  size

55″ LCD screen

Body Outside Dimension

1360(W)*830(H)*138(D)mm

VESA Wall Mount Dimension

600mm x 400mm x M6-10mm

View Angle L/R U/D

88°/88° 88°/88°

Panel Brightness

2500cd/㎡

Contrast Ratio

4000 : 1

Resolution

1920 * 1080

Picture Aspect Ratio

16 : 9

Respond Time

8 ms (Gray to Gray)

Window Tempered Glass

optical coated tempered safety 4mm

Body color

Smoke Black

Built-in Speaker

10W x 2 (8 ohm)

Video Input & Output Connection

Touch Panel  Type

option

HDMI

480i/480p/720p/1080i/1080p

DVI

1280×1024 60Hz / 1366×768 60Hz / 1920×1080 60Hz

PC-Input D-Sub 15pin (VGA)

1280×1024 60Hz / 1366×768 60Hz / 1920×1080 60Hz

Audio  Input

3.5mm phone jack

RS-232 Control  (OPTION)

D-Sub-9 pin

Inside IR Sensor

Yes

Auto-Dimming

Yes

Other Spec.

Waterproof Rating

IP54

Direct with Sunlight

Yes

Cooling System

Yes

Heating System

optional for special requirement with additional cost

AC Power Input

AC 85V ~ AC 240V  50~60Hz

Operation Temperature

-30 ℃~60 ℃ (optional)

Storage Temperature

-30 ℃~80 ℃ (optional)

Packing Dimension

142 x 99 x 28 cm

Body N.W./G.W. Weight

35 Kg / 58 Kg

Warranty

13 Month, 24 months add 5% cost

SAMPLE MOQ

1 pc

Key Features:

*Aluminum bezel endures rain, snow, humidity, dry heat, and almost any weather condition imaginable.  *Full 1080P High Definition  *Ultra bright panels coupled with anti-reflective tempered glass for safety and easy daytime viewing.  *Marine speakers capable of handling rain, snow, dust, etc.   *Thermostat controlled internal cooling system.  *Internal components are specially coated to protect from moisture.*With outdoor unique metal mash touch* With outdoor unique Sun glass free (1/4 lamda coating).

Optional industrial PC : CPU Intel I5 2410, RAM=2G, HDD 500G UP, Windows x7, Power adapter for the IPC

optional with additional cost

outdoor Special Metal Mash touch film

optional with additional cost

outdoor 3G P

optional with additional cost

Power on consumption

350W ~ 750W

Accessories

POWER CORD (1.8M) x 1   REMOTE KIT x1
